Cycloblower VHX 100CDL300A-RC1 Screw Blower

• Max Pressure PSI: 17
• Max Vacuum inHg: 14
• Connection: 5" Flange
• Lubrication: Dual Splash Lube w/ optional Force Feed Lubrication
• Seal Type: Inpro Seals

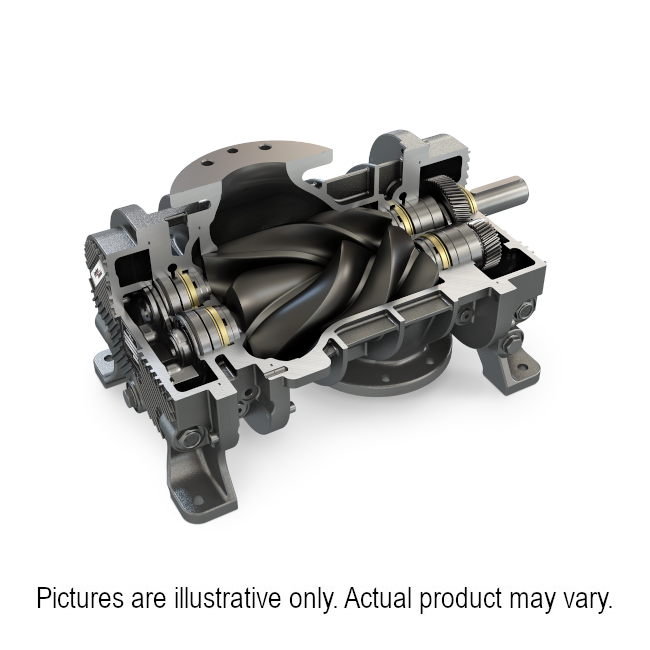

• Patented, highly-efficient 3×5 helical screw rotor
• Food-grade PTFE (Polytetrafluoroethylene) coated rotors minimize air loss while maximizing efficiency
• 3 discharge port designs matches the most efficient performance to your application requirements
• High pressure capability up to 36 psi
• Helical Timing Gears
• Unique Dual Splash Lubrication with eccentric slinger ring
• Force Feed Lubrication optional for applications under 20 psi, required for applications over 20 psi
• Inpro Premium Oil Seals
• Mechanical Seals also available for gas applications
• Piston Ring or Graphite Air Seals
• Options including: Force Feed Lubrication, Mechanical Seals For Gas Applications, PTFE (Polytetrafluoroethylene) Coated Cylinder, Top and Bottom Discharge Orientations, 3 and 4 Mounting Foot Configurations Available, ANSI or Metric Flanges, RTD Ports & Probes

18 months from the date of shipment or 12 months from the date of installation, whichever occurs first.
