- Max Pressure PSI: 36
- Max Vacuum inHg: 22
- Connection: 14" Flange In, 12" Flange Out
- Lubrication: Dual Splash Lube w/ optional Force Feed Lubrication
- Seal Type: Inpro Seals

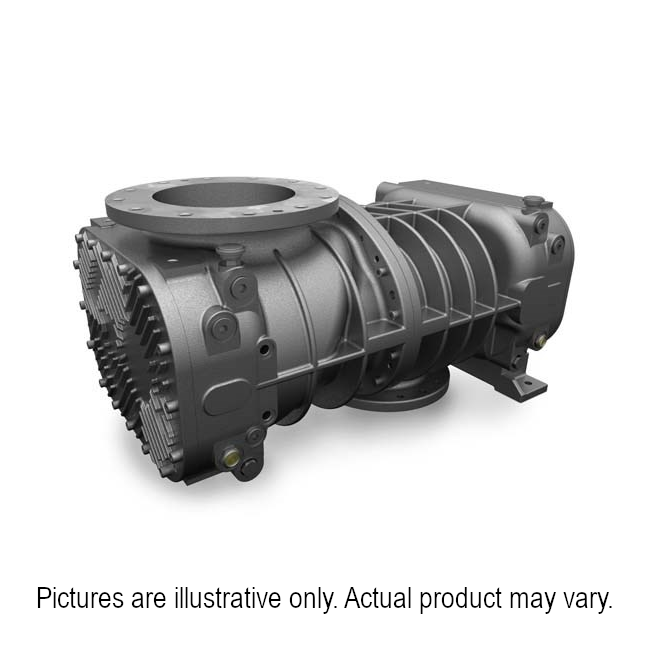

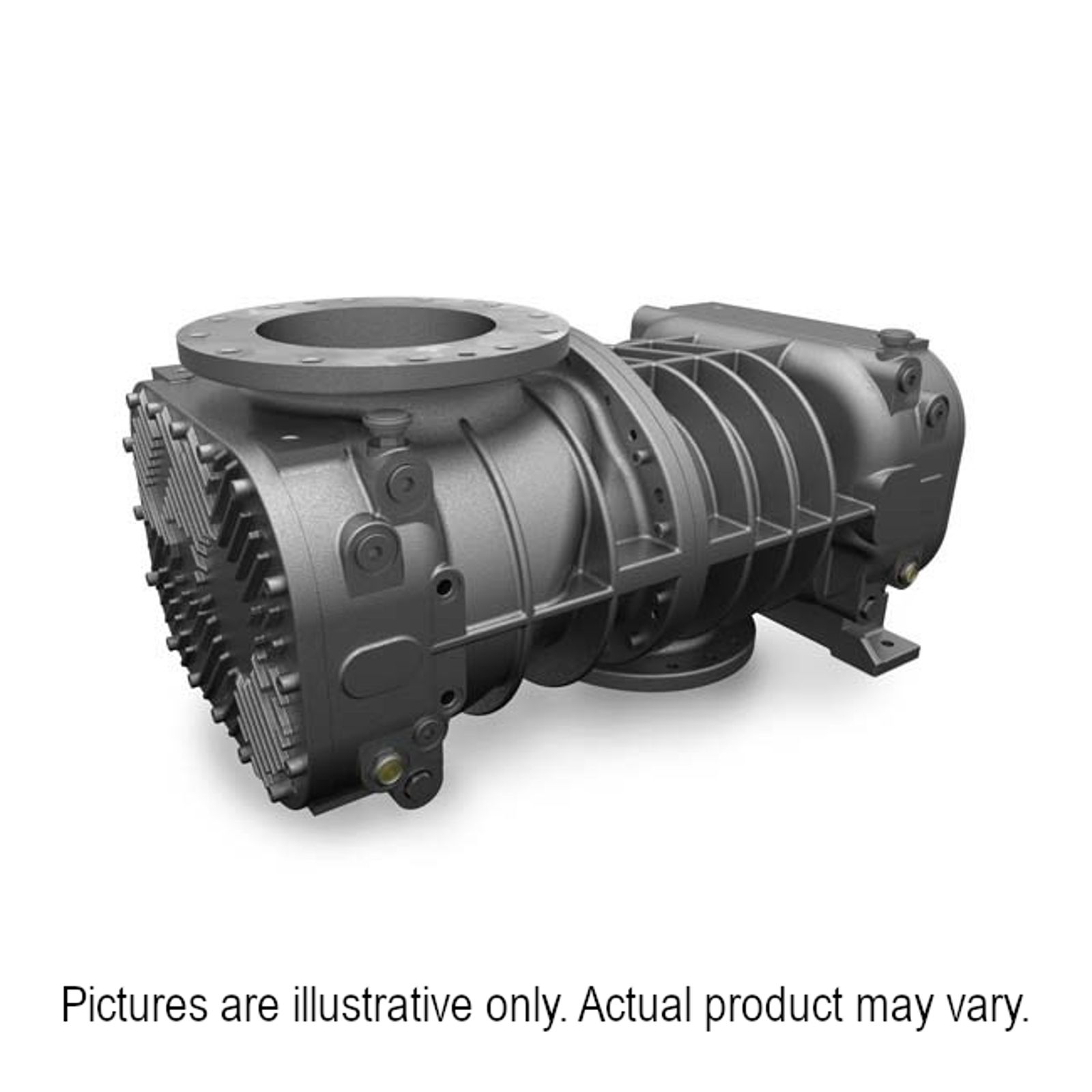

Gardner Denver CycloBlower H.E. Series 250CDL750-RC1 Helical Screw Blower
- Max Pressure PSI: 36
- Max Vacuum inHg: 22
- Connection: 14" Flange In, 12" Flange Out
Shaft Configuration: Please contact for options.
SKU: 104-CRTAXLXXXXXX
Availability: Contact for availability.

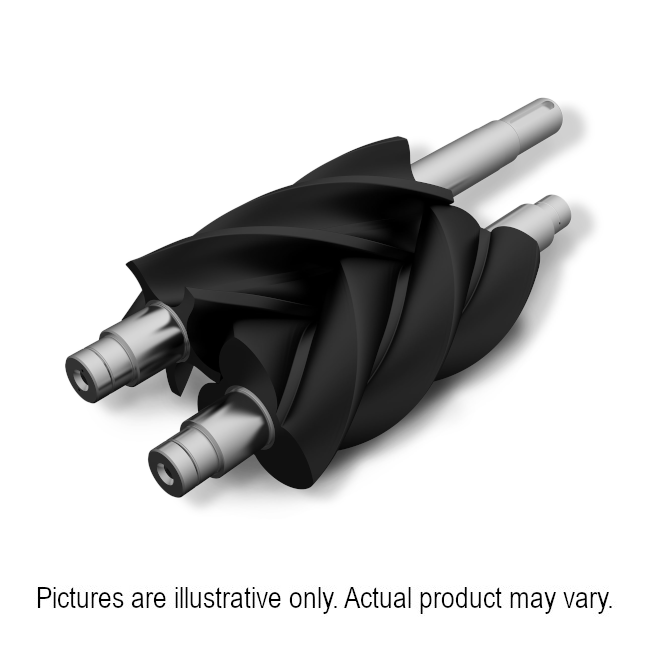

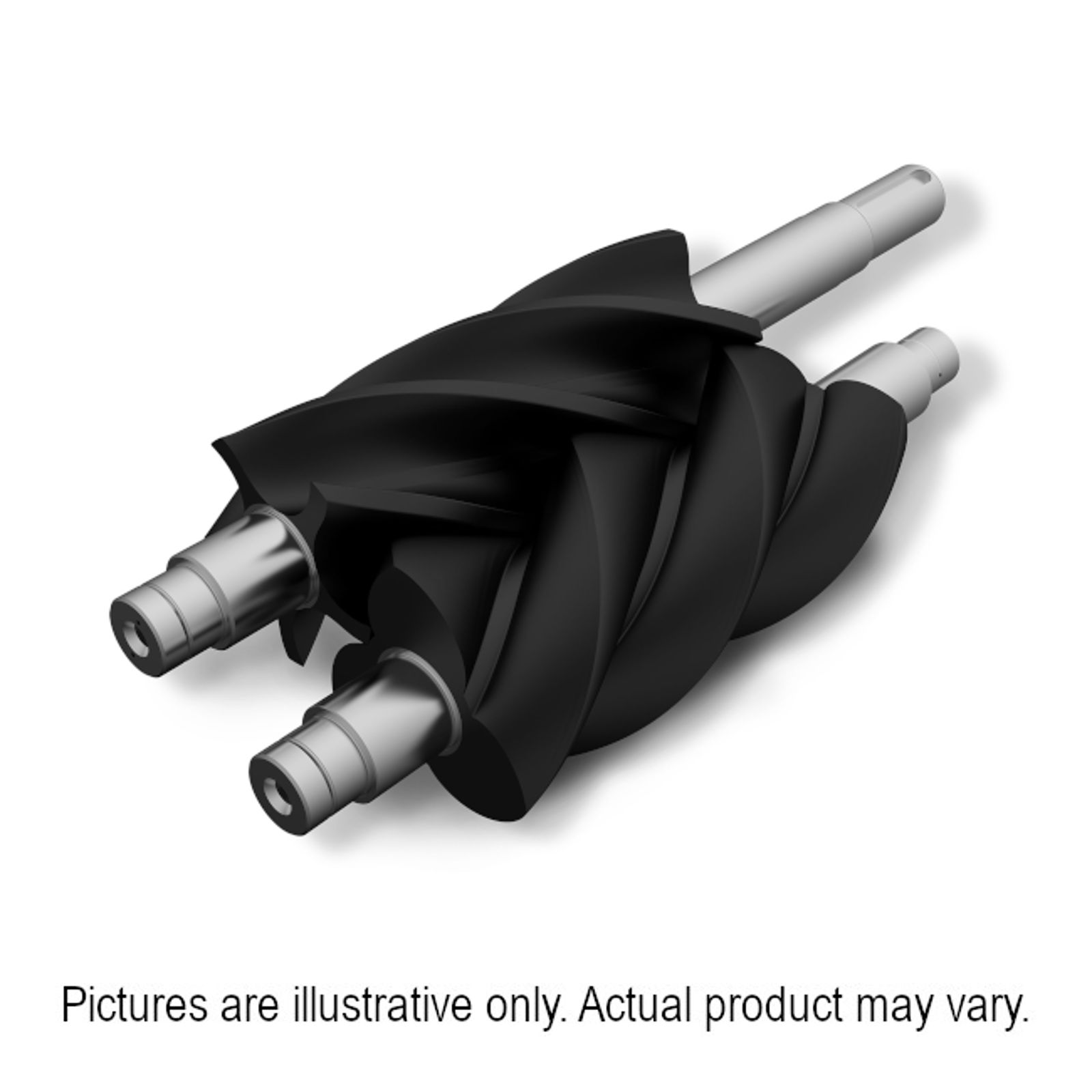

- Patented, highly-efficient 3×5 helical screw rotor
- Food-grade PTFE (Polytetrafluoroethylene) coated rotors minimize air loss while maximizing efficiency
- 3 discharge port designs matches the most efficient performance to your application requirements
- High pressure capability up to 36 psi
- Helical Timing Gears
- Unique Dual Splash Lubrication with eccentric slinger ring
- Force Feed Lubrication optional for applications under 20 psi, required for applications over 20 psi
- Inpro Premium Oil Seals
- Mechanical Seals also available for gas applications
- Piston Ring or Graphite Air Seals
- Options including: Force Feed Lubrication, Mechanical Seals For Gas Applications, PTFE (Polytetrafluoroethylene) Coated Cylinder, Top and Bottom Discharge Orientations, 3 and 4 Mounting Foot Configurations Available, ANSI or Metric Flanges, RTD Ports & Probes
18 months from the date of shipment or 12 months from the date of installation, whichever occurs first.
