- Max Pressure PSI: 13
- Max Vacuum inHg: 16
- Connection: 4" NPT
- Lubrication: Grease / Splash Lube
- Seal Type: Viton Lip Seals

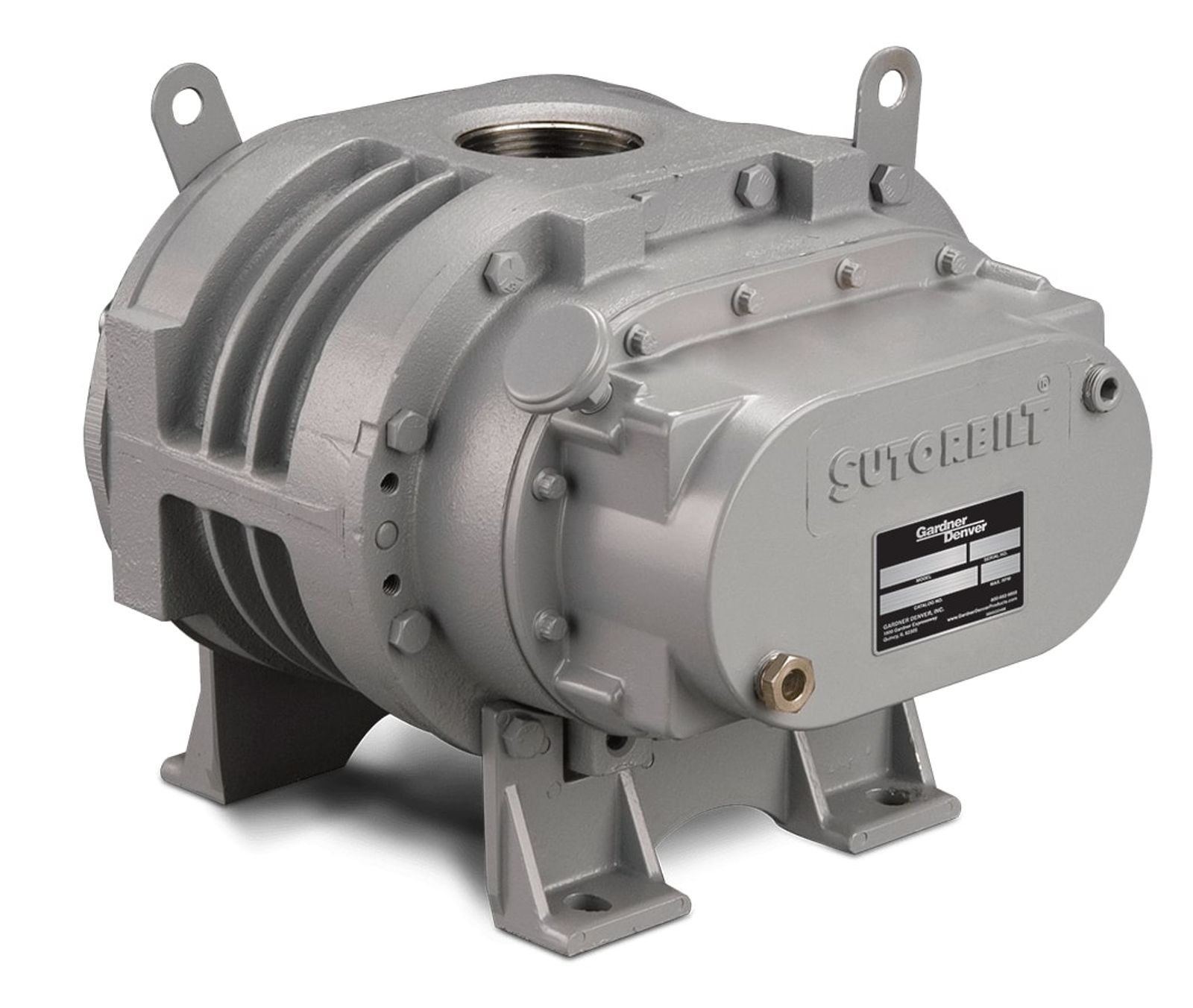

Gardner Denver Sutorbilt Legend 5M Positive Displacement Blower & Vacuum Pump
- Max Pressure PSI: 13
- Max Vacuum inHg: 16
- Connection: 4" NPT
Manufacturer Part Number(s): GAEMASA, GAEMBSA, GAEMCSA, GAEMDRA
Shaft Configuration: The universal mount foot design allows for shaft configuration interchangeability. Please see the Shaft Configuration Guide.
SKU: 101-GAEMXSA
Availability: Typically in stock.
- Available with mechanical seals for gas applications
- Cast iron, dynamically balanced bi-lobe impellers machined to an exact profile
- High strength steel drive shaft extended for V-belt or direct connection
- High-strength impeller case is heavily ribbed and features oversized dowel pins for precise mounting and alignment of head plates
- Anti-friction bearings
- High temperature Viton oil seals
- Gear end splash lubricated, drive end grease lubricated
- Each Legend is built under rigid ISO 9001:2000 quality standards
- Available in 20 sizes with 4 different configuration options
- 5 Quiet sizes available - 3MQ, 4HQ, 4MQ, 5MQ, 6MQ - a Quiet options available for reduced noise up to 5 dBA
24 months from the date of shipment or 18 months from the date of installation, whichever occurs first.
